產品特征product features

Light Distribution :  Narrow angle spotlight, spotlight, middle angle glimmer and polarizing。

Material:Lamp shell -ADC12  is die-cast aluminum; The base bracket  is  aviation aluminum alloy lamp body;

               The surface glass is 4mm ultra white steel safety glass and transmittance 93%

Surface Treatment:  The three level hard anode oxidation process is adopted in military industry,

                                   and the thermal conductivity can reach 230W/m*K. The lamp body is anti UV polyester powder,

                                   and outdoor grade spray series with anti UV10 years protection;

Driving Method :Built in constant current drive and automatic encoding on power and support RDM and high temperature overload protection.。

InstallationThe lamp is equipped with SUS304 stainless steel bracket with gear locking function. The minimum adjustment angle is 5 per grid.
                   Outlet wire 0.5m，4pins wire 2 x0.75 mm2 + 2pins wire  2 x 0.5mm2 and 2 x1.5 mm2 rubber cable connector (Dimming ,RGB, RGBW
                    version).Outlet wire 0.5m，2 pins wire 2 x1.5 mm2 or 3 x1.5 mm2 rubber cable connector(ON/OFF version).

Option :Beam angle, surface  spray colors ,anti-glare device and outlet wire length。

產品細節product details

產品尺寸Product Size

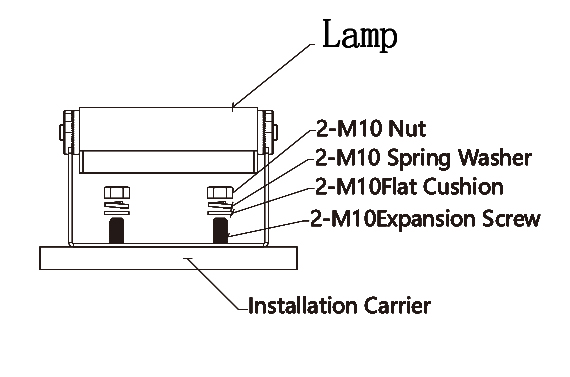

安裝方式Installation method

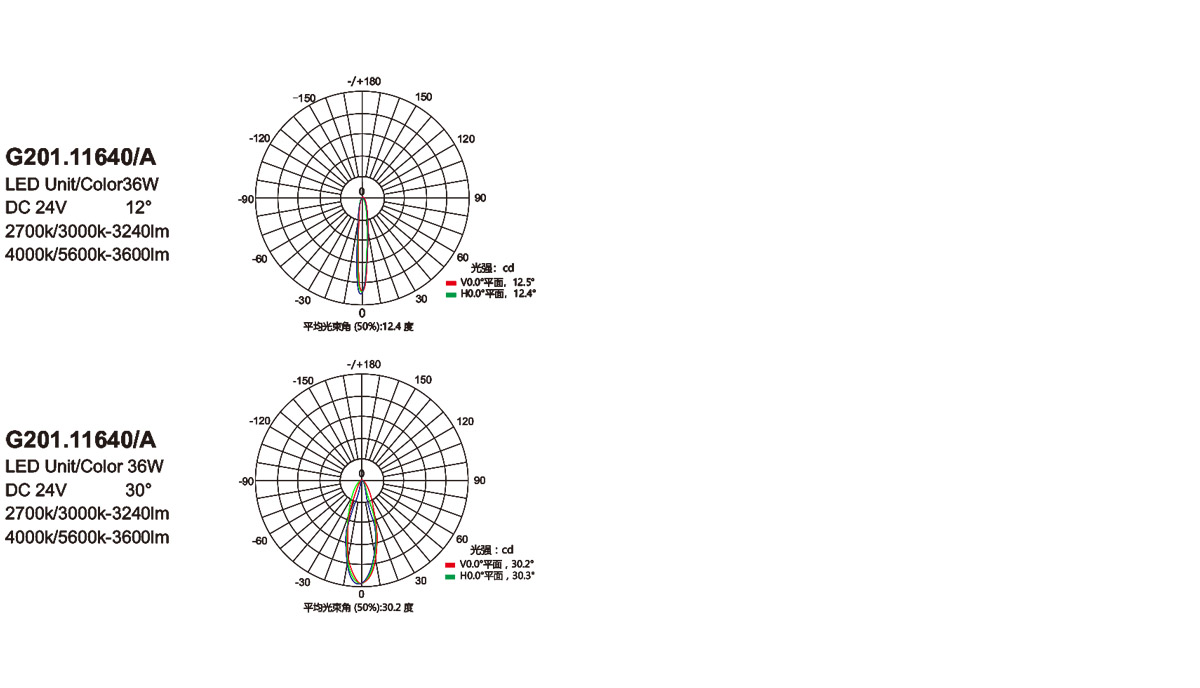

配光曲線Light distribution curve

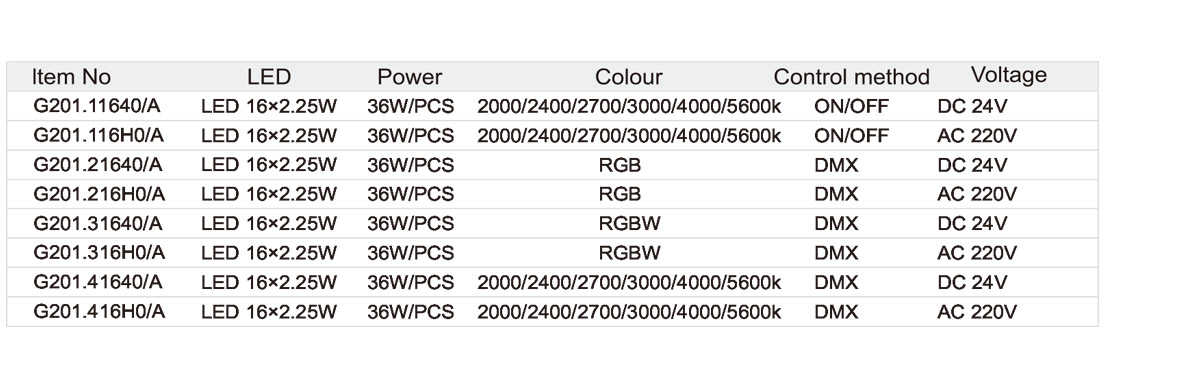

規格參數Specifications
